SDX-PocketScan Handheld Site Documentation Solution
Create 3D point cloud models from every job, every day.

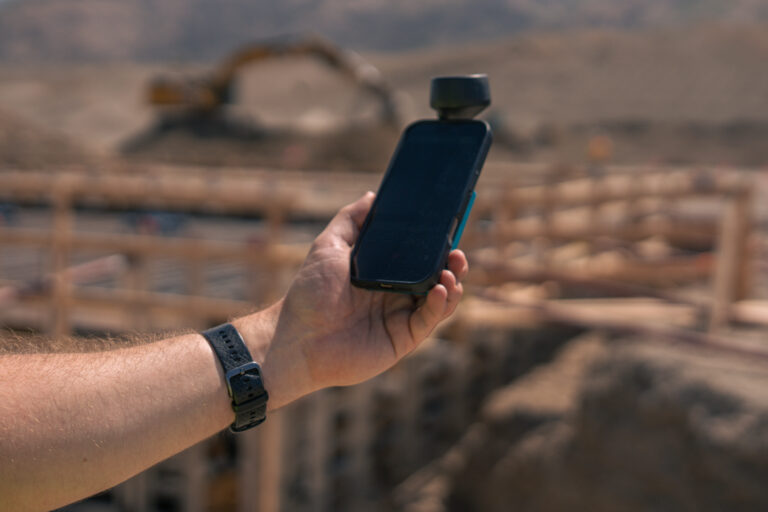

SDX-PocketScan is the handheld member of the Sodex lineup. It turns an iPhone into a portable 3D capture device for all the moments when there isn’t a machine scanning and the solution doesn’t justify a surveyor traveling to the site. It supports both LiDAR and photogrammetry capture modes. Thanks to the RTK receiver, it delivers survey-grade, centimeter-level accuracy suitable for construction, surveying and utility documentation.
Anyone on the Crew Can Run It
The app-driven workflow guides the user through each step, from setting up the scan to uploading the results, so even crew members with no surveying background can produce usable 3D models after minimal training. Device and project settings are managed centrally through SDX-Cloud, meaning the operator on-site simply connects the receiver, opens the app, and starts scanning. The integration of Ground Control Points (GCPs) and the rover mode into the scanning workflow further improves photogrammetry model accuracy, anchoring the 3D output to known reference positions for reliable, survey-grade results across the entire capture area.
Captured data uploads to SDX-Cloud for processing within minutes, the same platform the machine-mounted systems feed into, so handheld and machine data captures live in one project.

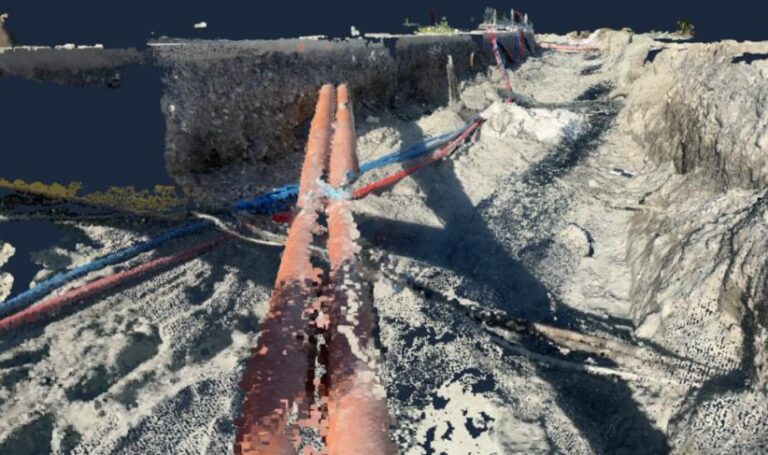

Underground utility documentation
Small site survey
As-built proof
Earthworks jobs
Jobsite Reporting
So Easy that Documentation Becomes a Habit
The value shows up on the days nobody planned for. A tie-in gets exposed that isn’t where the drawings said it would be. A subcontractor’s work needs documenting before it’s buried. An owner asks what the site looked like three weeks ago. None of those justify mobilizing a survey crew, and all of them cost real money when there’s no record — so most of the time they simply go undocumented.
The SDX-PocketScan changes that math. When capturing a trench takes two minutes and the phone is already in someone’s pocket, documentation stops being a decision and starts being a habit.

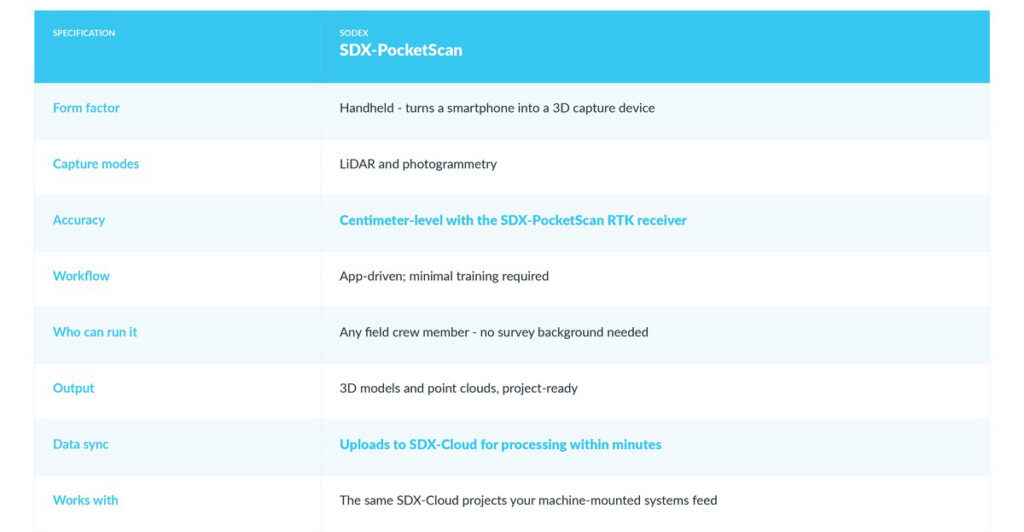

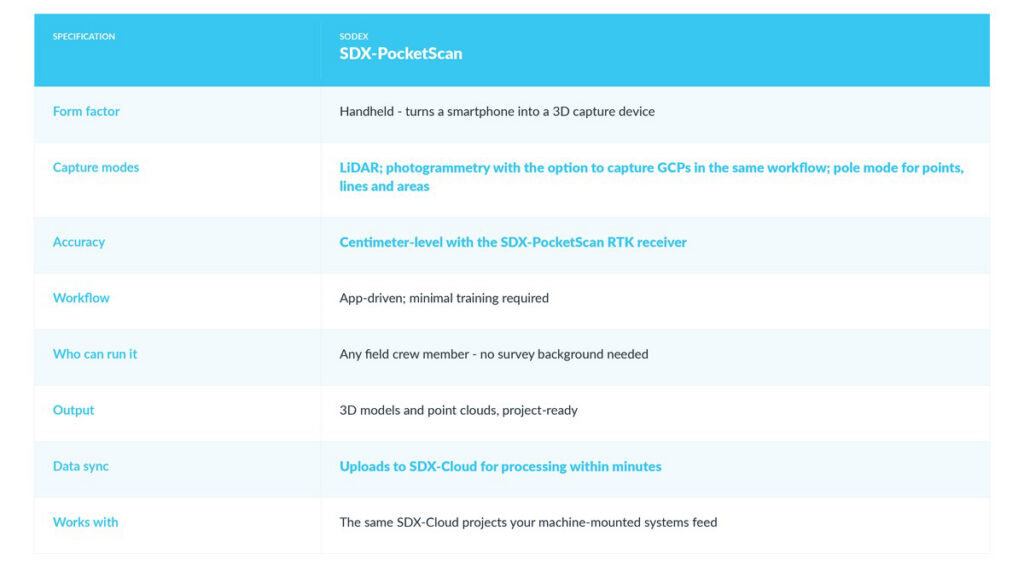

SDX-PocketScan At A Glance
SDX-PocketScan is ideal for utility documentation, small site surveys, trench and as-built proof, and general job-site traceability. For large-scale earthmoving conducted by dozers, the SDX-Compact offers automatic LiDAR documentation with as-built data arriving at the office every 10 minutes. Use SDX-4DVision excavator solution to verify trench depths, slope compliance and backfill progress without the operator leaving the cab.
Document it before it’s covered up.
SITECH Intermountain can have a SDX-PocketScan in your crew’s hands and their captures in SDX-Cloud the same week.
Already running Sodex on your machines? The SDX-PocketScan feeds the same projects — for everything your machines don’t reach.
